Can-Am OnX6+ LED 10 Inch Shock Mount Light Bar Kit - Can-Am 2017-24 Maverick X3
Can-Am OnX6+ LED 10 Inch Shock Mount Light Bar Kit - Can-Am 2017-24 Maverick X3
Driving/Combo / Clear
1173 N Kraemer Pl
1173 N Kraemer Pl
Anaheim CA 92806
United States
Choose options
Description

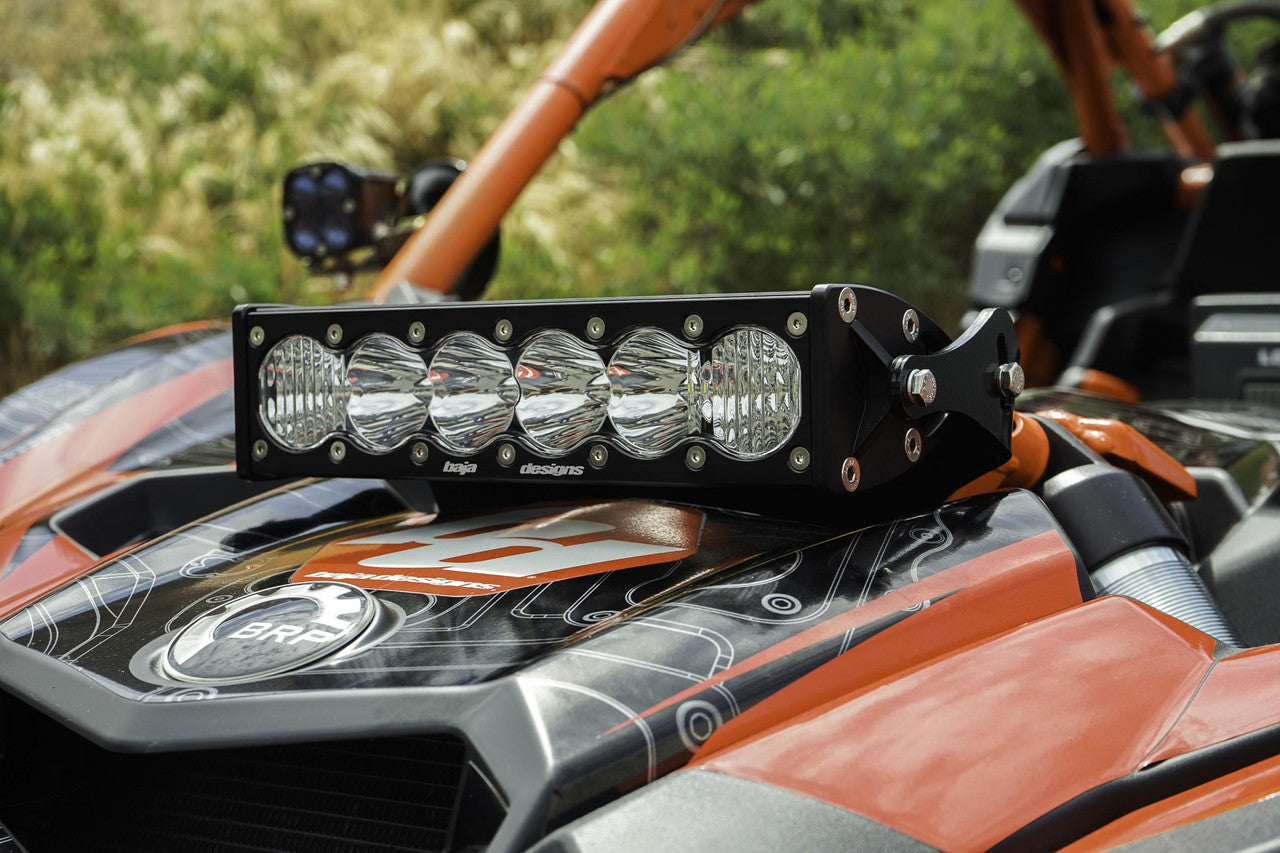

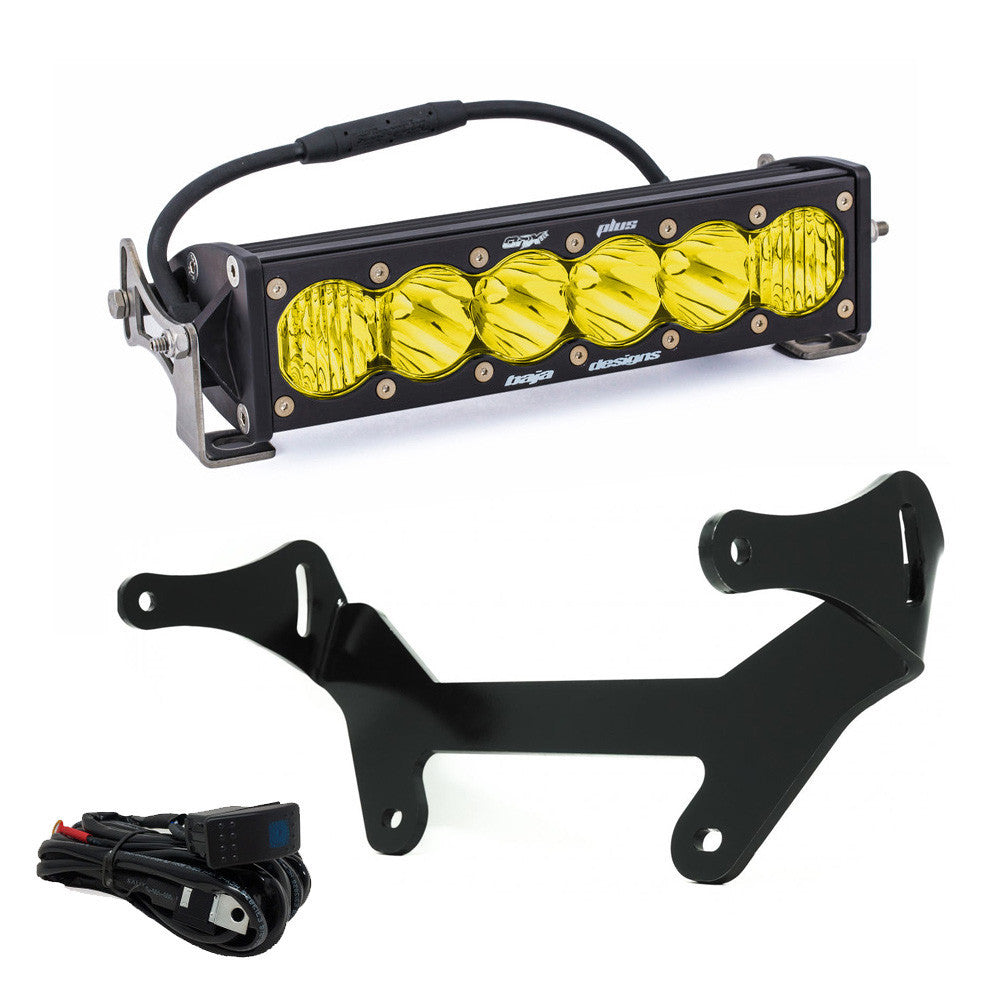

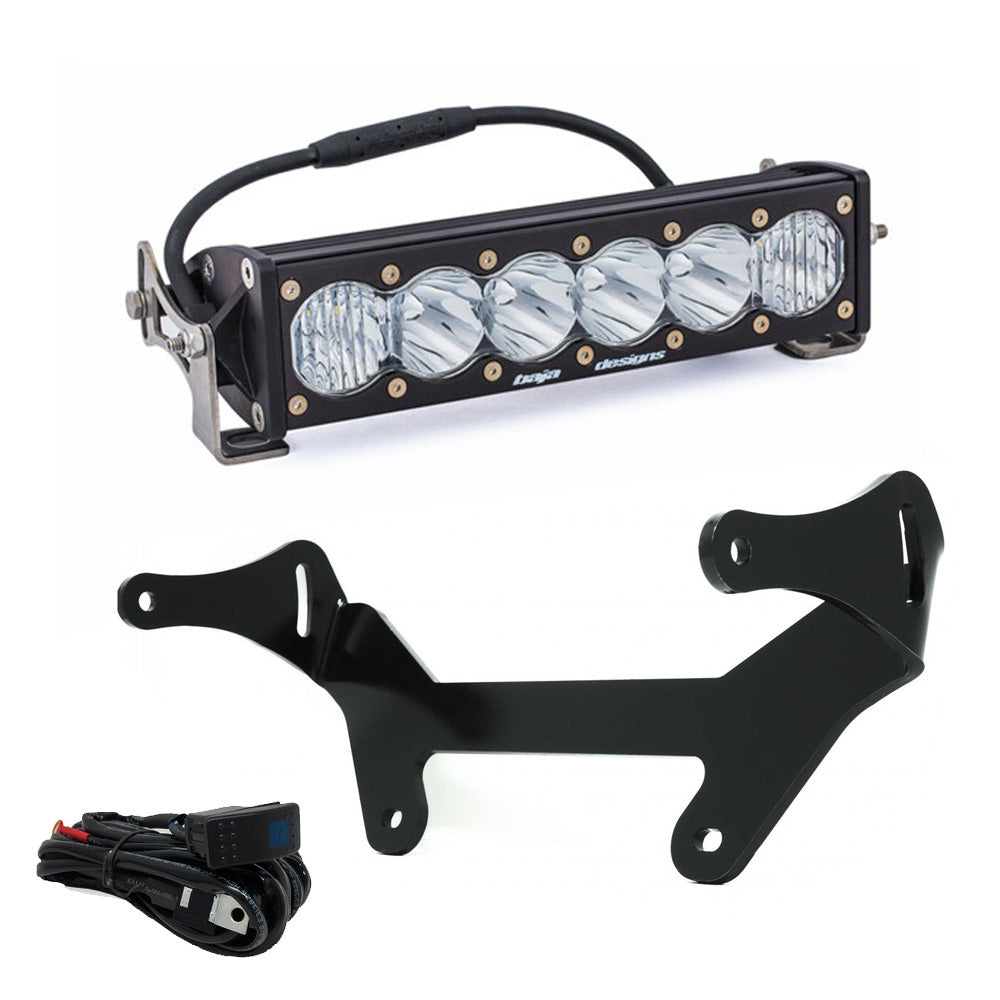

Separate yourself from the pack with the Baja Designs Can-Am OnX6 Shock Mount. This kit includes a 10 inch OnX6 light bar and mount that easily bolts up to the factory shock tower and keeps the light stable at high speeds. This kit is ideal for someone looking to gain forward projecting light while maintaining the X3's aggressive styling.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Vehicles equipped with aftermarket shocks or hardware may require modifications to the hardware list, and or bracketry in our kit.
FITS
Detailed Specs
Included with kit:
SKU: 451003
Dimensions
| Depth (in.) | 4.290 |
| Height (in.) | 2.690 |
| Length (in.) | 10 |
| Weight (lbs.) | 4.250 |
Specifications
| Amperage Rating (A) | 7.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 10,817 (High); 9,230 (Low) |
| Description | Straight; Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 6 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 10 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 106.260 |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
