Baja Designs Can-Am X3 Headlight Kit S1 Laser W/C Headlight Kit
Baja Designs Can-Am X3 Headlight Kit S1 Laser W/C Headlight Kit
Multi-Pattern / Clear
1173 N Kraemer Pl
1173 N Kraemer Pl
Anaheim CA 92806
United States
Choose options
Description

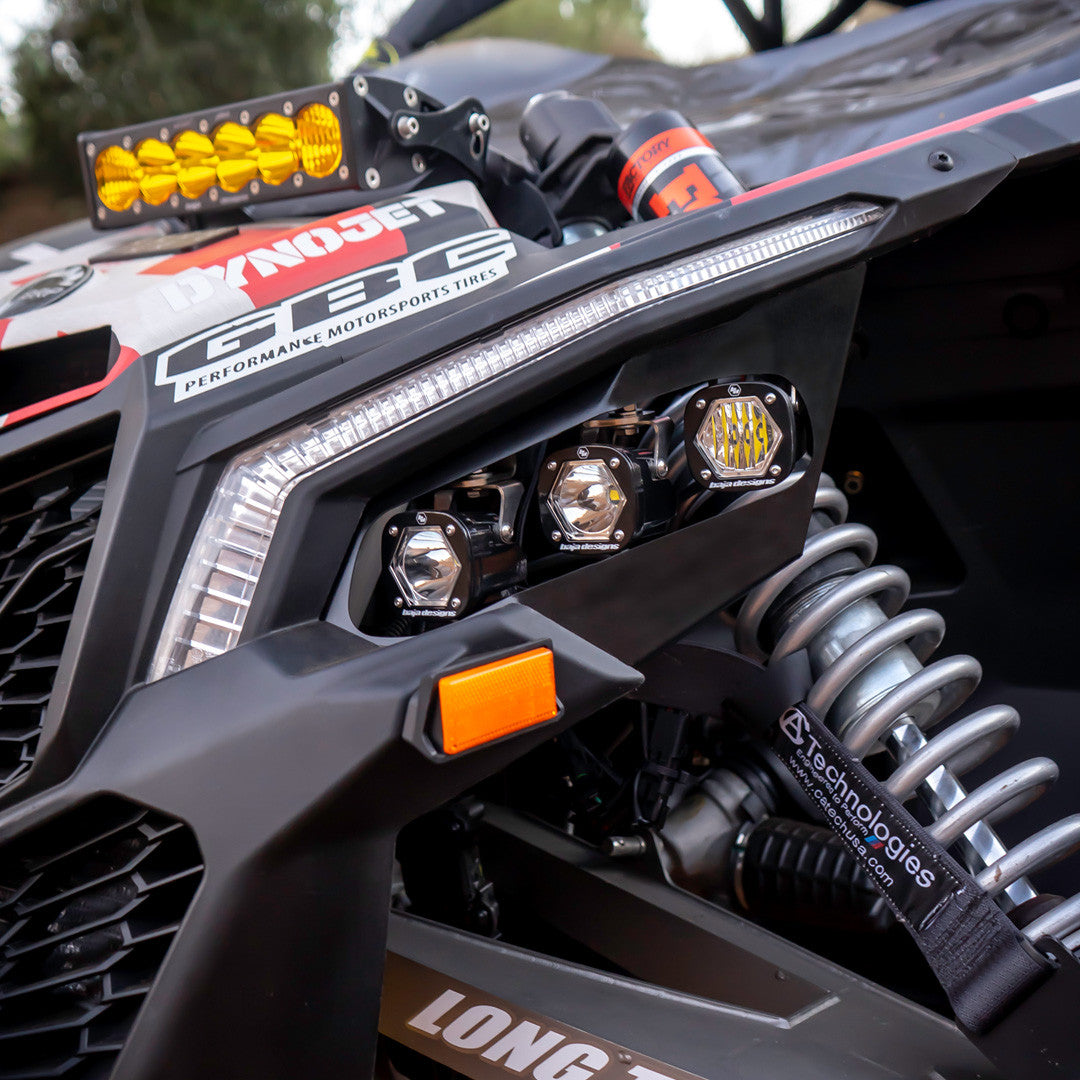

Our team spent copious amounts of time at the RandD table with this kit, our end result was creating a light kit that will give you the performance and style your Can-Am X3 deserves. With the low amperage draw of the six S1 lights this kit won't draw a substantial amount over the stock lights though will greatly improve your driving experience. With our plug and play wiring system and precision cut and bent brackets installation is a breeze. If you're looking for lights that will set your X3 apart from the crowd and also give you race quality lighting this is the kit for you! Please note this is a laser equipped kit. What this translates to is giving the end user an extreme amount of distance. While the lumens are lower, the distance achieved is over 300 percent farther than the most effective distance LEDs on the market today. With the LED S1 and Laser S1 we're able to create a smooth blend of both distance and near field lighting. US Patent Number 11273751.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
FITS
Detailed Specs

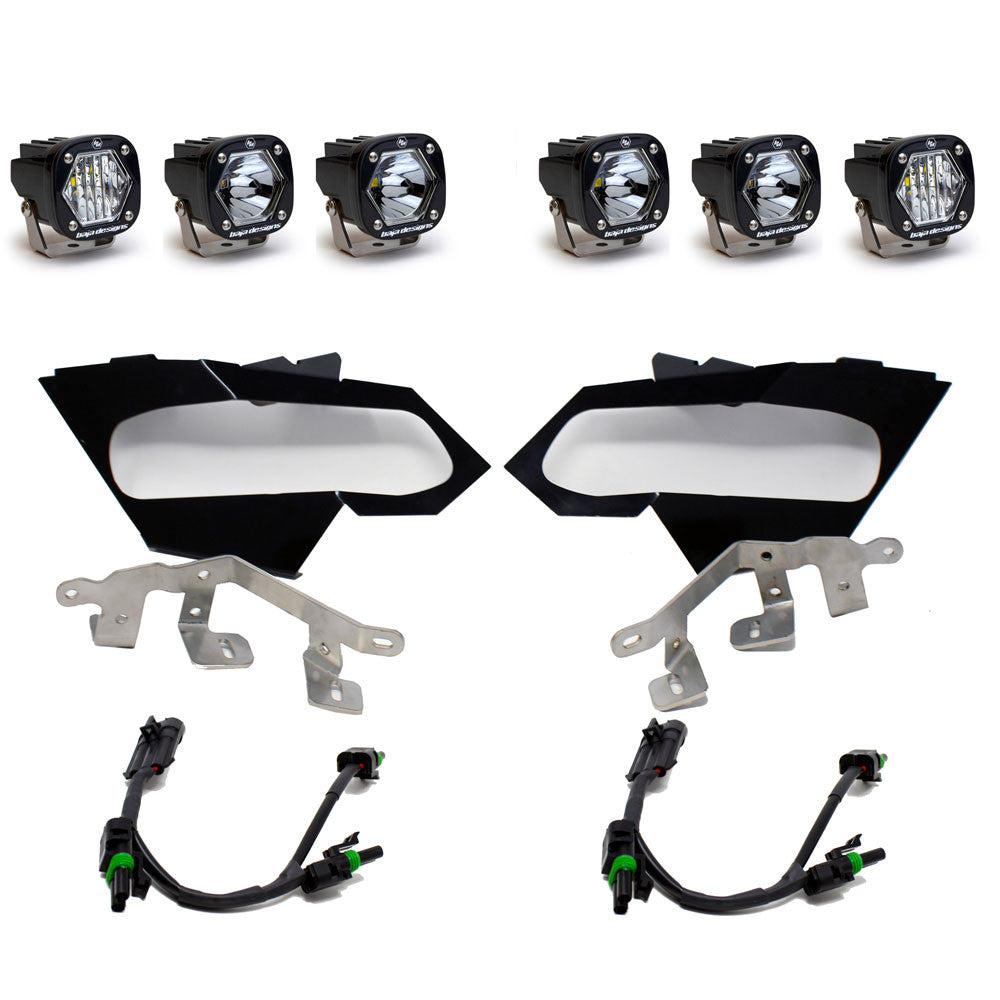

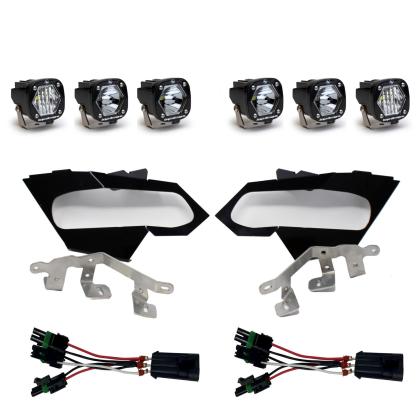

Included with kit:
SKU: 380007
Dimensions
Depth (in.) | 2.100 |
Height (in.) | 2.100 |
Length (in.) | 2.100 |
Weight (lbs.) | 0.400 |
Specifications
Amperage Rating (A) | 1 |
Average Rated Life (hr.) | 2,000 |
Beam Pattern | Laser Spot |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 500 |
Description | Laser Spot; Clear |
Housing Color | Black |
Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam |
Lighting Quantity | 1 |
Lighting Technology | Laser |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | S1 Laser Light Pod |
Universal or Specific | Universal |
Wattage (W) | 13.800 |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 380001
Dimensions
Depth (in.) | 2.100 |
Height (in.) | 2.100 |
Length (in.) | 2.100 |
Weight (lbs.) | 0.400 |
Specifications
Amperage Rating (A) | 1.420 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Spot |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 2320 |
Description | Spot; Clear |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam |
Lighting Quantity | 1 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | S1 LED Light Pod |
Voltage | 9-28 |
Wattage (W) | 19.596 |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 380005
Dimensions
Depth (in.) | 2.100 |
Height (in.) | 2.100 |
Length (in.) | 2.100 |
Weight (lbs.) | 0.400 |
Specifications
Amperage Rating (A) | 1.420 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Wide Cornering |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 2320 |
Description | Wide Cornering; Clear |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam |
Lighting Quantity | 1 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | S1 LED Light Pod |
Voltage | 9-28 |
Wattage (W) | 19.596 |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
